Tunnel Gantry

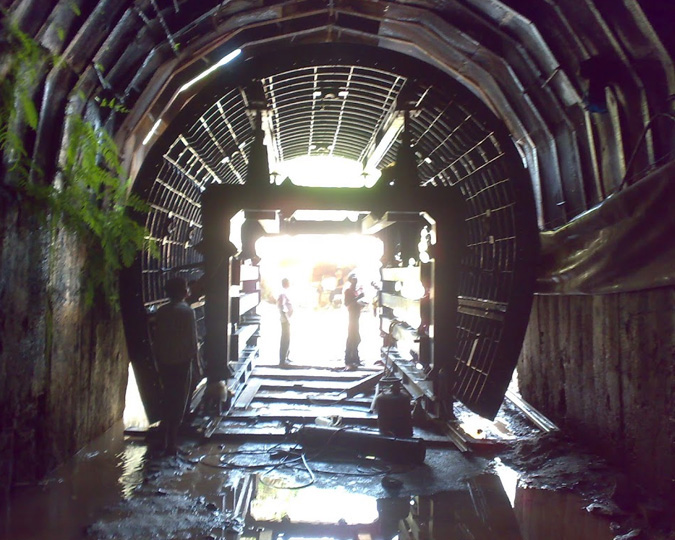

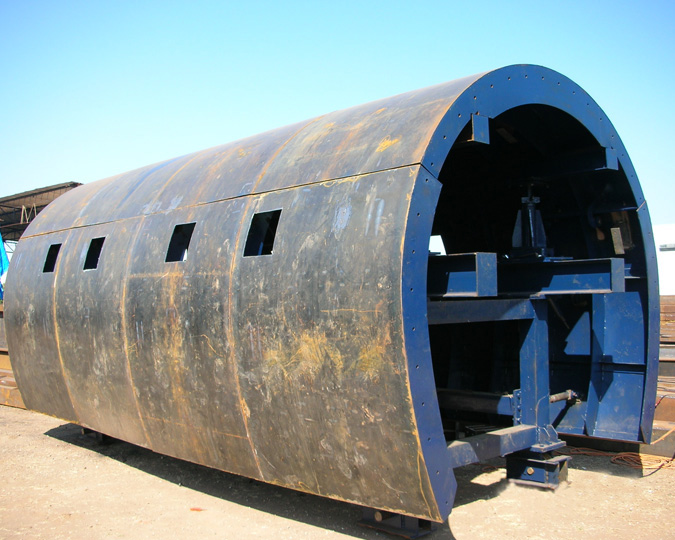

Horse Shoe Shape Tunnel
Horse Shoe Shape Tunnel Horse Shoe Shape Tunnel Horse Shoe Shape Tunnel

5000 MM (W) * 3600 MM (H) * 6000 MM LG

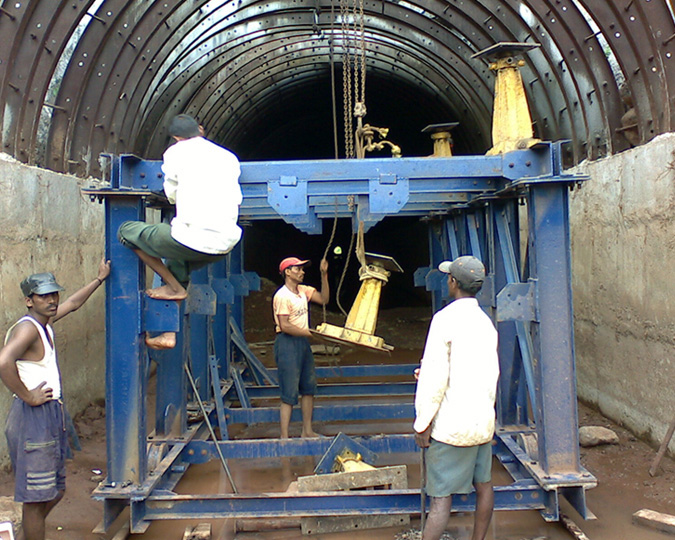

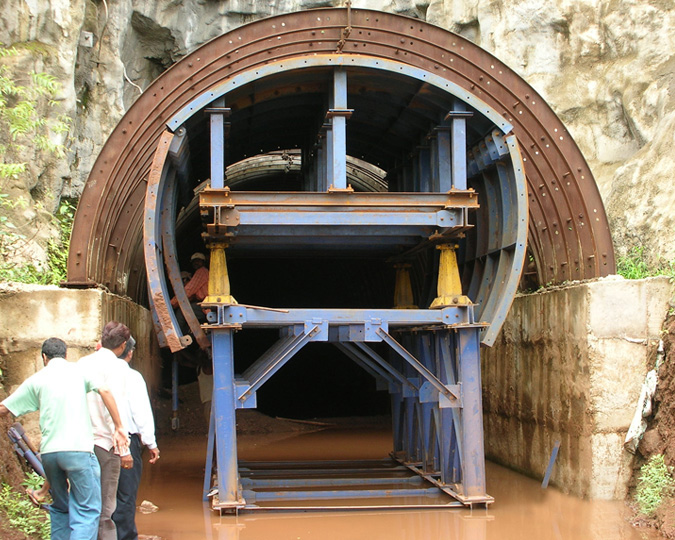

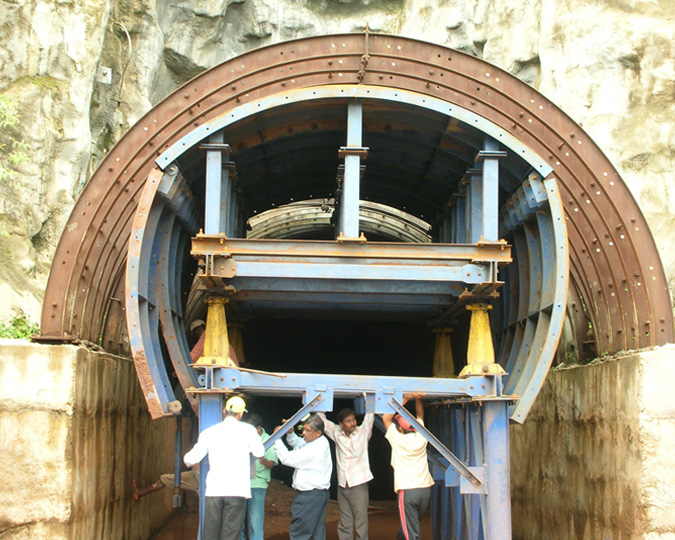

Tunnel Lining Casted upto spring Level
Tunnel Lining Tunnel Lining Tunnel Lining

5000 MM (W) * 5050 MM (H) * 6000 MM LG

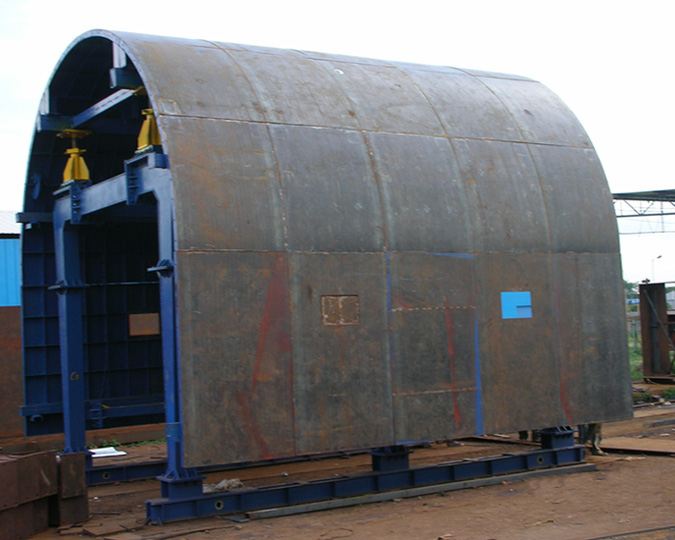

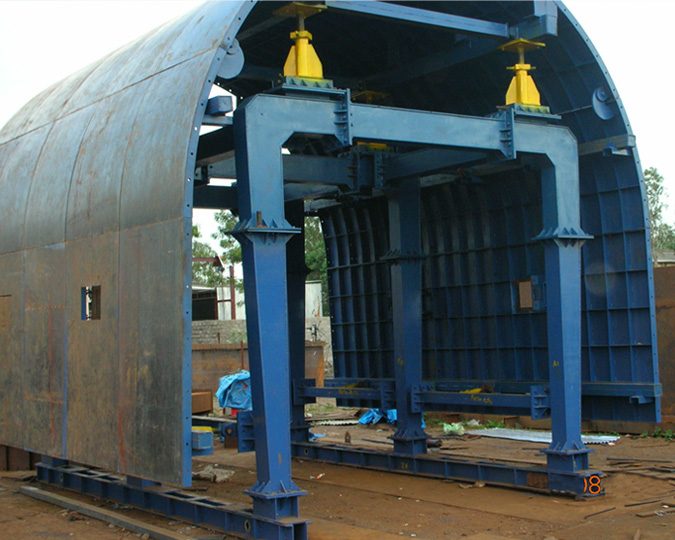

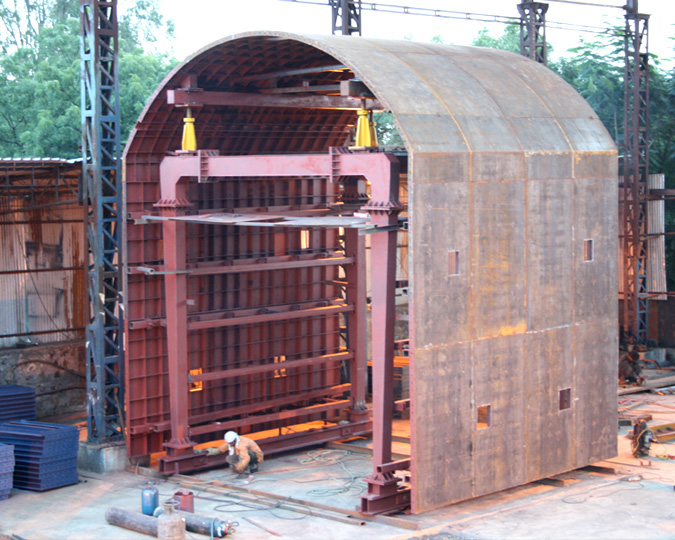

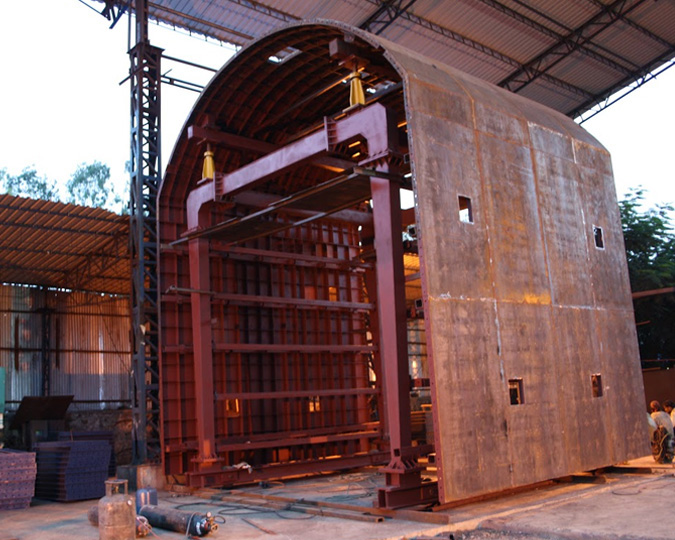

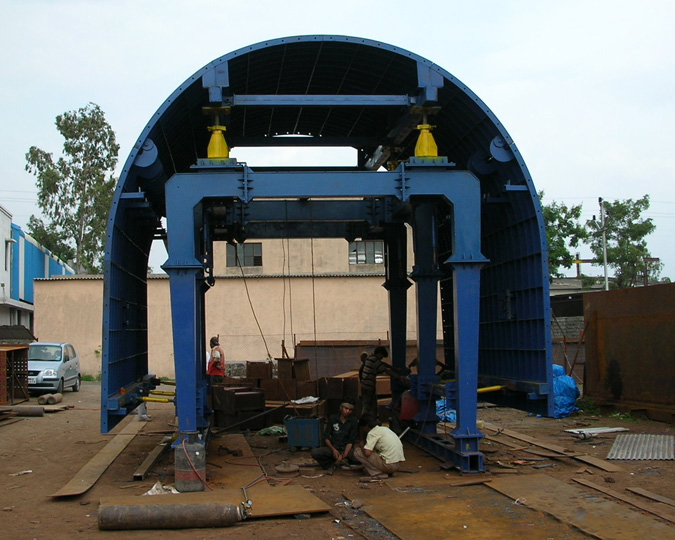

'D' Shape Tunnel
D Shape Tunnel D Shape Tunnel D Shape Tunnel

5500 MM (W) * 5000 MM (H) * 6000 MM LG

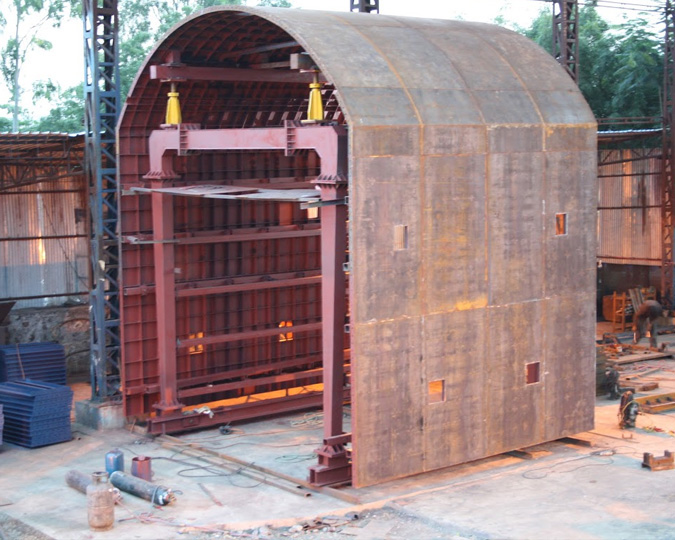

D Shape Tunnel D Shape Tunnel D Shape Tunnel

6750 MM (W) * 6000 MM (H) * 5000 MM LG

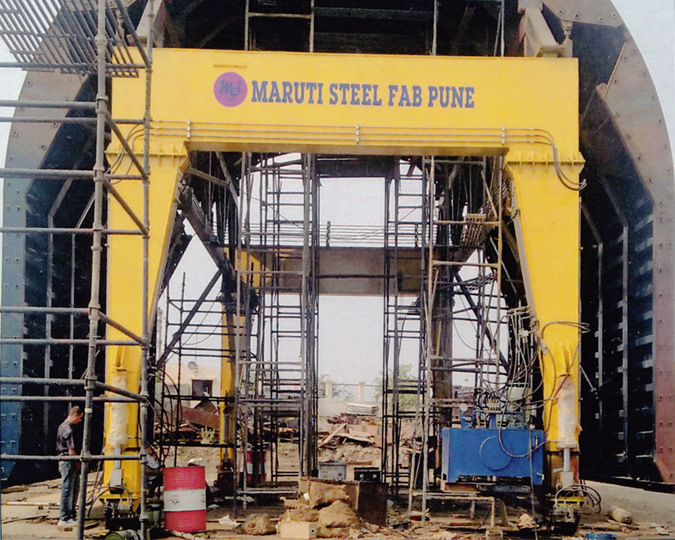

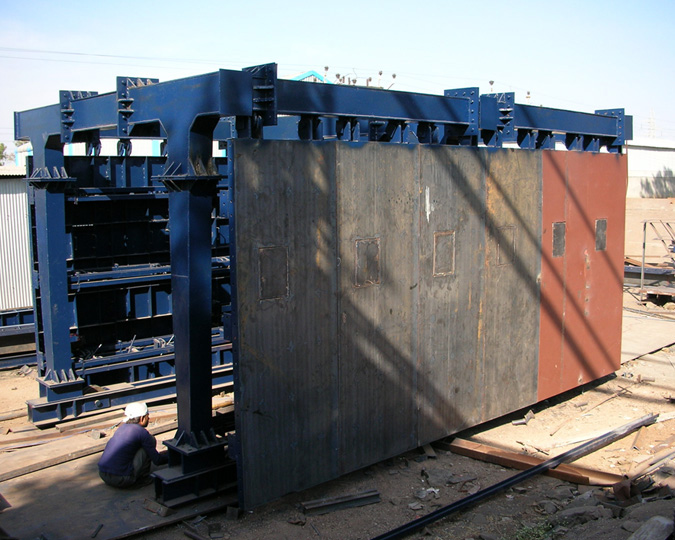

Tunnel Formwork
Tunnel Formwork Tunnel Formwork Tunnel Formwork

In the same Tunnel Gantry after completion, removed side shutter and fixed crown thus reducing cost of Tunnel Formwork

3600 MM upto Spring level to 5500 MM (W) 6000 MM LG

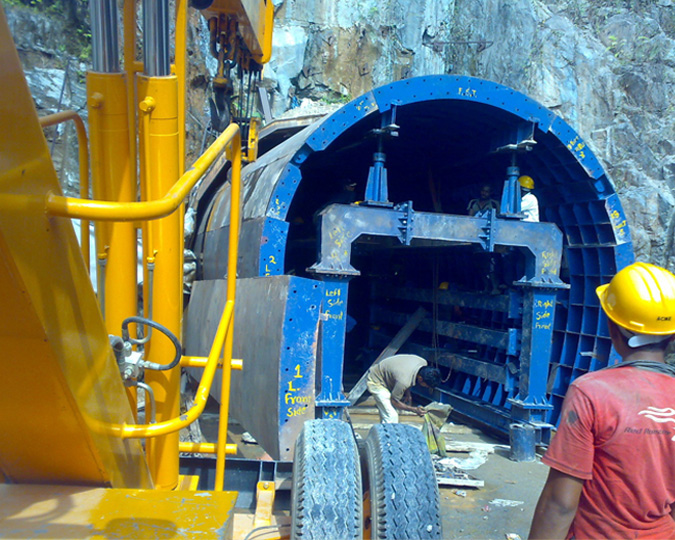

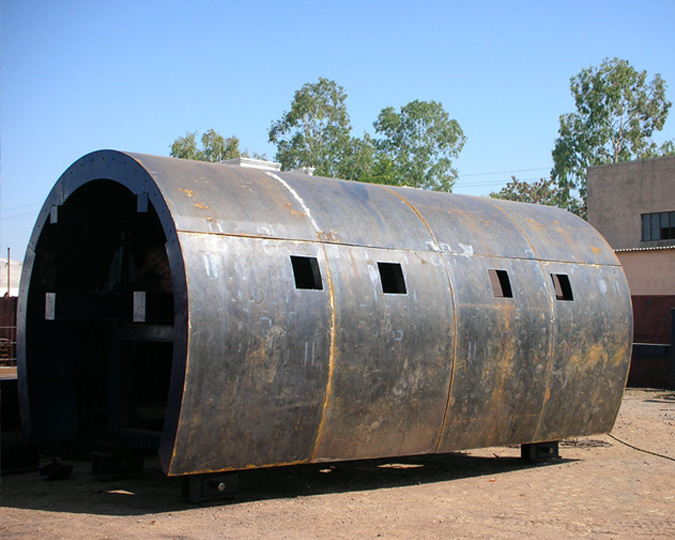

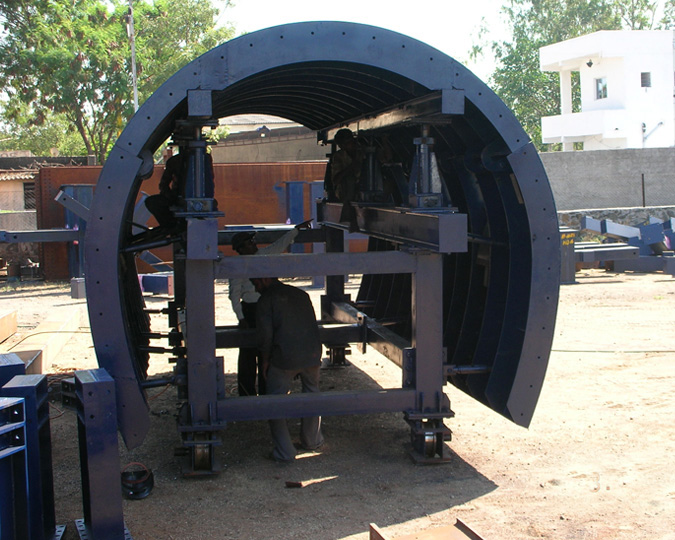

Horse Shoe Shaped Tunnel Gantry for Power Project
Horse Shoe Shaped Tunnel Gantry Horse Shoe Shaped Tunnel Gantry

Size 4800 MM (H) * 3950 MM(W) * 6000 MM Long
