Scaffolding & Shuttering

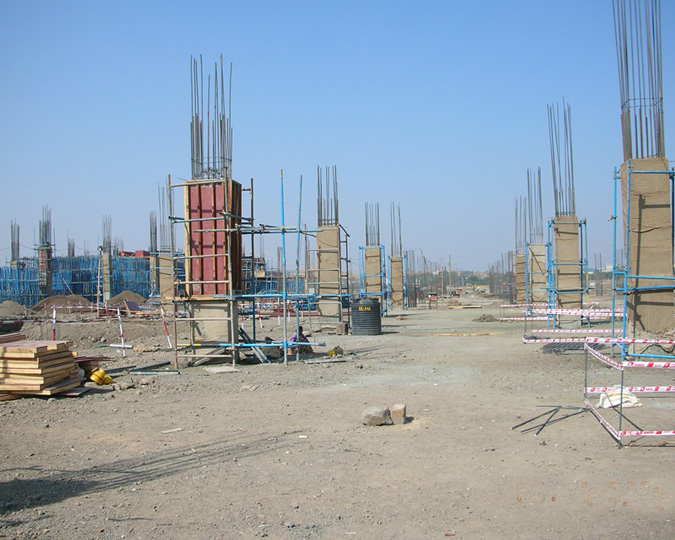

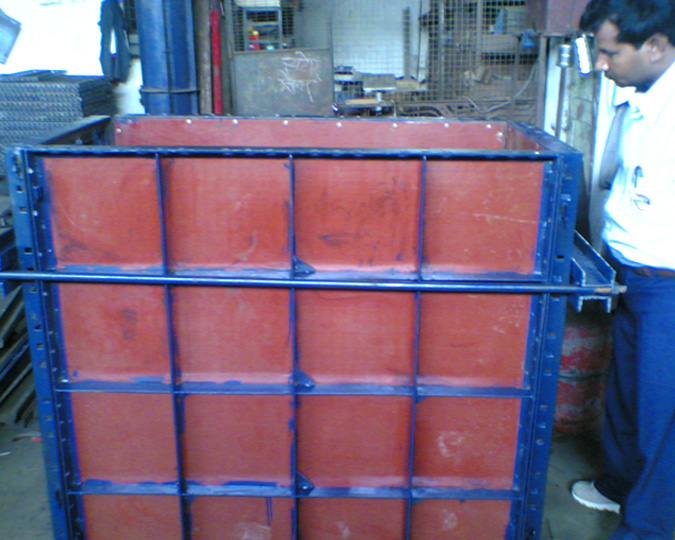

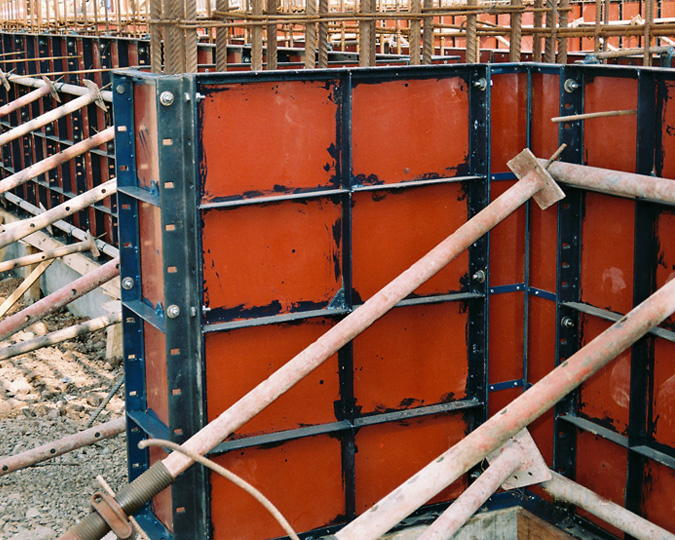

- MSF Brand Plywood Shuttering Plates are manufactured from high densified film faced shuttering ply encased in rigid steel frame for protection against wear and tear and water
- The outer frame comprises of 63 * 5/6 MM flat, and internal grid of 50 * 5 MM flat forming grid of 300 * 300 MM or 300 * 450 MM. The stiffner flat are of one piece giving a solid strength. High Densified Ply is firmly riveted to steel frame by 23 numbers high class aluminium steel composite rivets with auto riveting machine & sealed by silicon sealant.
- Since these plates are incased in steel frames, it gives 100 to 110 repetition from 1 side to 50 to 60 repetition from other side.

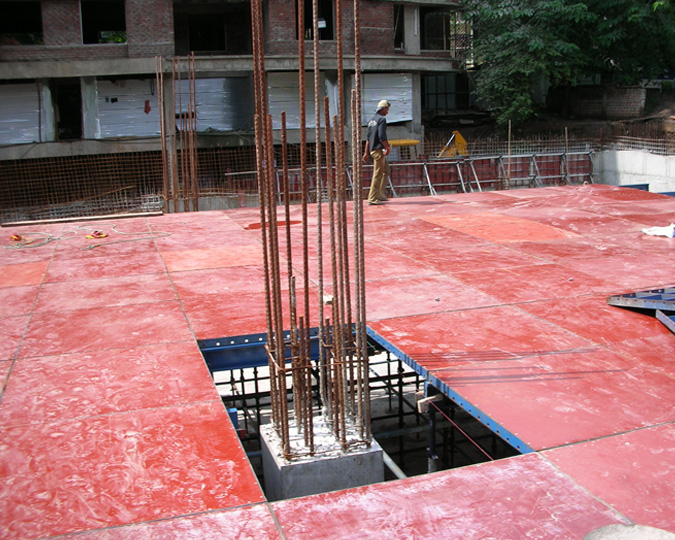

- Plywood shuttering plates specially designed for P.T. slabs, for building, bridges, heavy industries, power plants.
- MSF Brand High Densify ply shuttering is light in weight sturdy and having very smooth finish thus reducing the cost of plastering and giving dent free table top finish to the slab.
- Since these plates are manufactured in size of 600 * 1200 MM, 1200 * 1200 MM & 1200 * 2400 MM the cost of props & spans is reduced by 30 to 40%.
- MSF Brand High Densify ply shuttering plates are lighter in weight, with higher strength cost saving durable easy to carry from slab to slab.
- Being laser in cost than steel plates in slashes the initial investment cost, further after use of 110 to 120 times only by changing the plywood the plates becomes brand new plates.
- MSF Brand ply wood shuttering plates are in cased in steel frame and fixed by rivets, aves cost of timber also for labour at site cannot burn the shuttering plates.

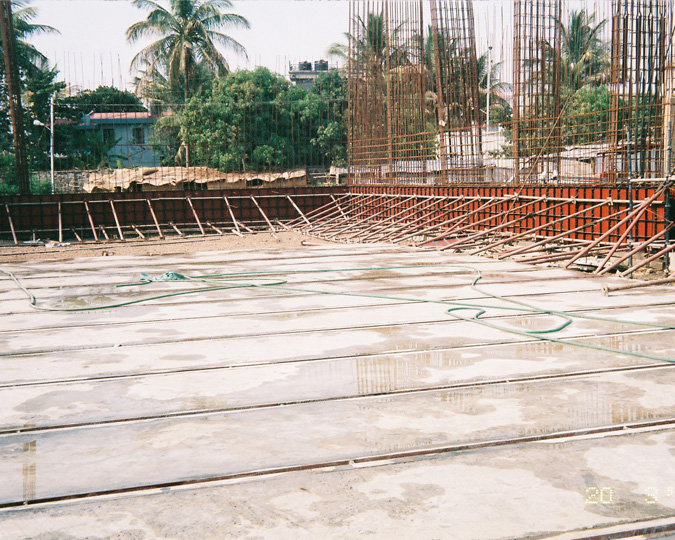

Plywood plates specially designed for P.T. Slab, where in only primary grid is required, secondary grid not required.
High tensile steel fabricated beams are also provided by us. Where it can take load up to 480 MM thick slabs give support @ every 1200 MM CC.

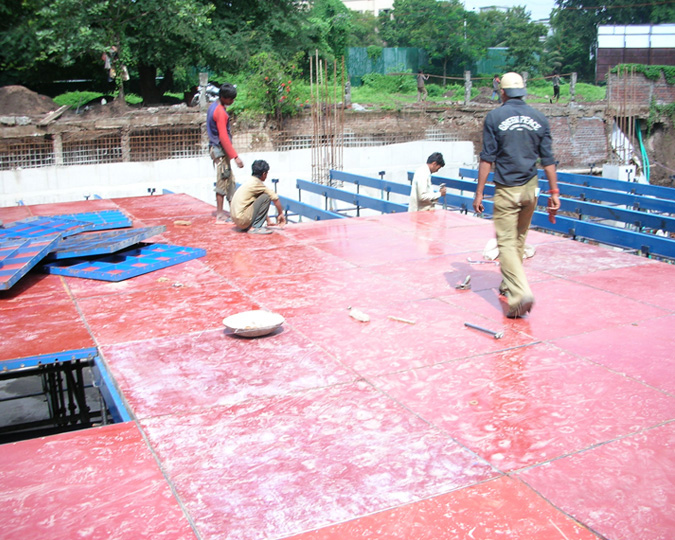

MSF Ply Plates making slab casting Safe & Secure with ultimate finished concrete.

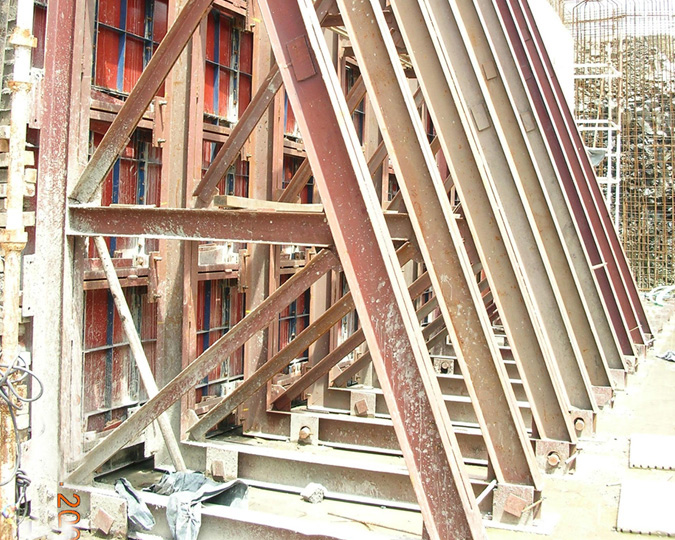

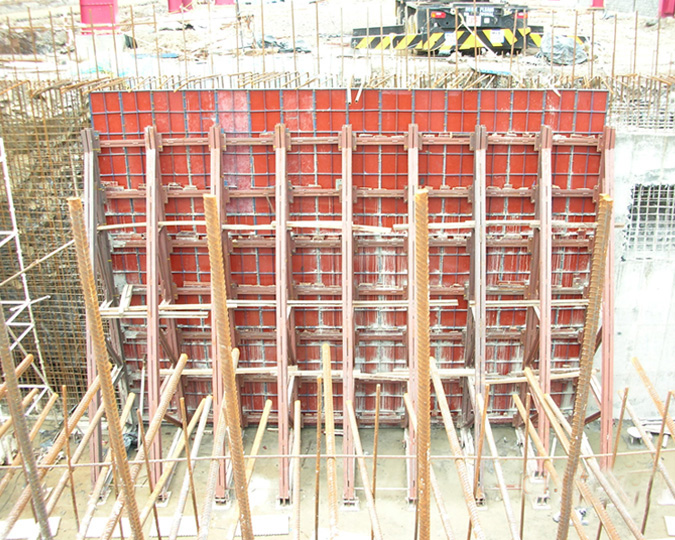

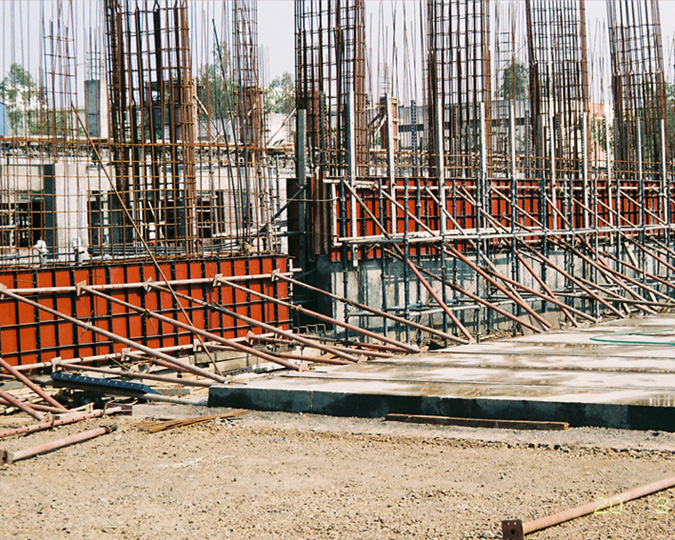

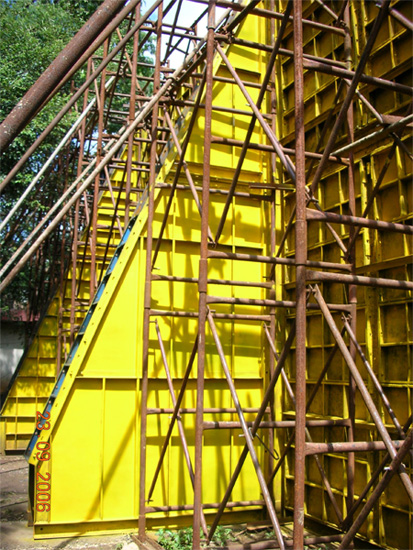

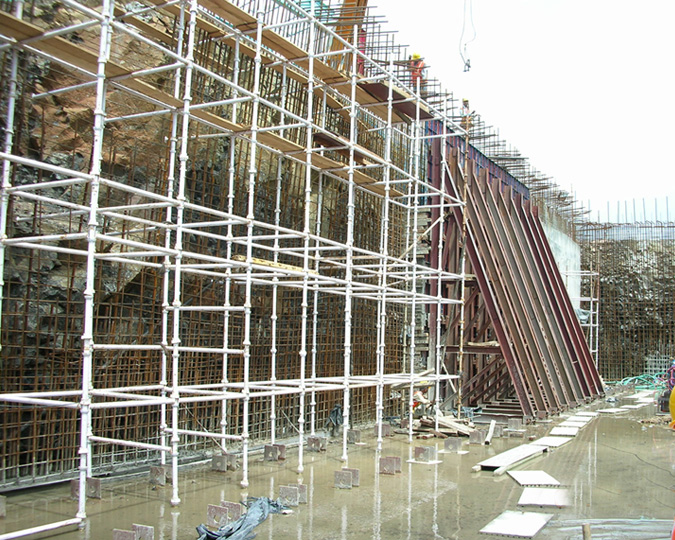

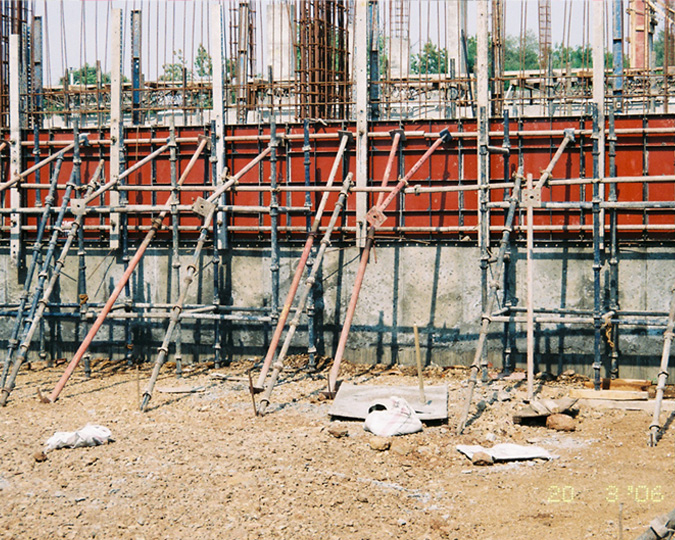

Plywood plates for retaining wall of 50 Mtrs * 7.2 Mtrs height single pour supported by truss and wallers
Simple Method of Connection

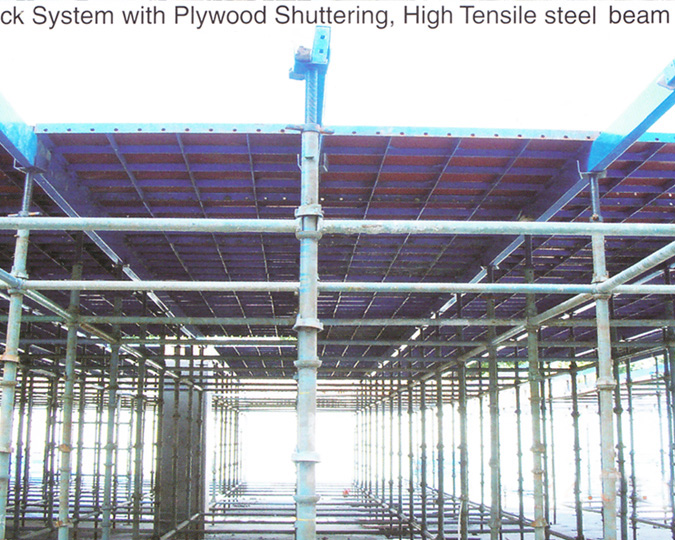

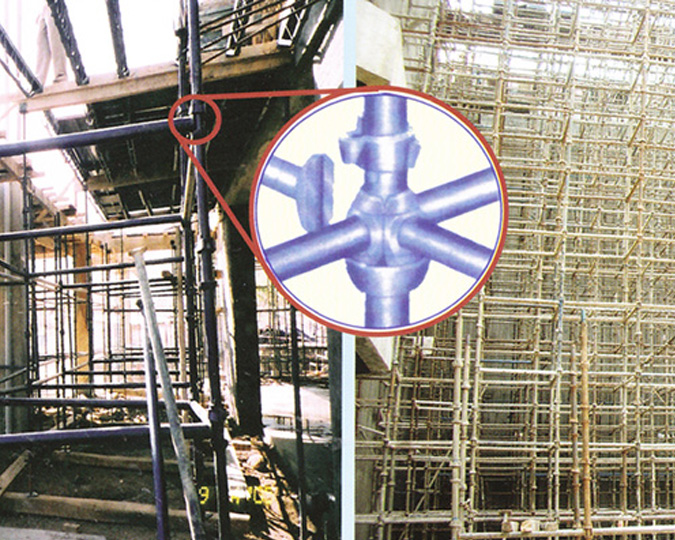

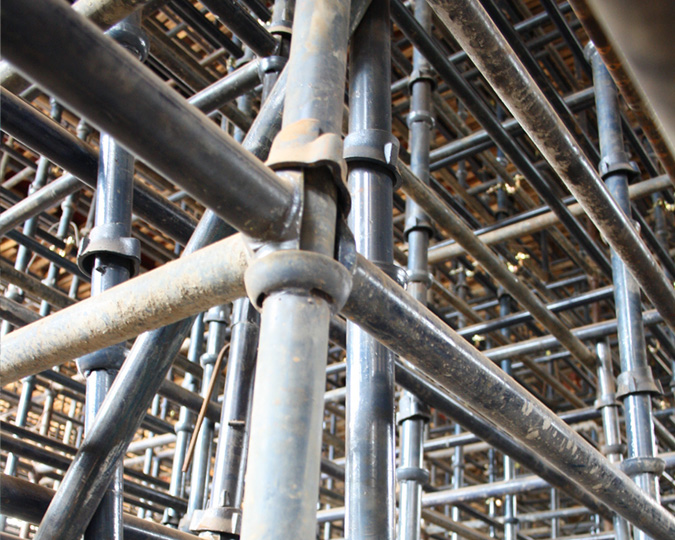

The principle feature of MSF, is the unique method of connecting horizontal to verticals in one single action without the use of nuts, bolts or edges. the locking device is formed by two cups, a fixed cup which is welded to verticals and a sliding upper cup is moved down and roated by hammer blow to give a positive and rigid connection.
Benefits of Cup-Lock
Strong, Time saving in erection, quick to assemble, Simple to erect, Fully systemiszed, can eliminate tube and loose fittings. Confidence from in-depth technical support.
Verticals

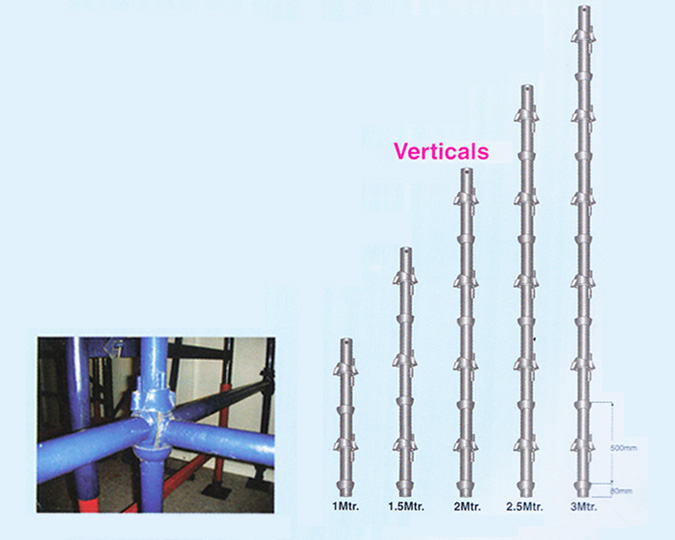

Cup-Lock verticals are provided in seven basis sizes with cup joints welded at 500 MM or 1000 MM intervals. The captive mobile top cups are malleable casting which endure rough site handling, whilst the fixed bottom cups are pressed from high quality steel

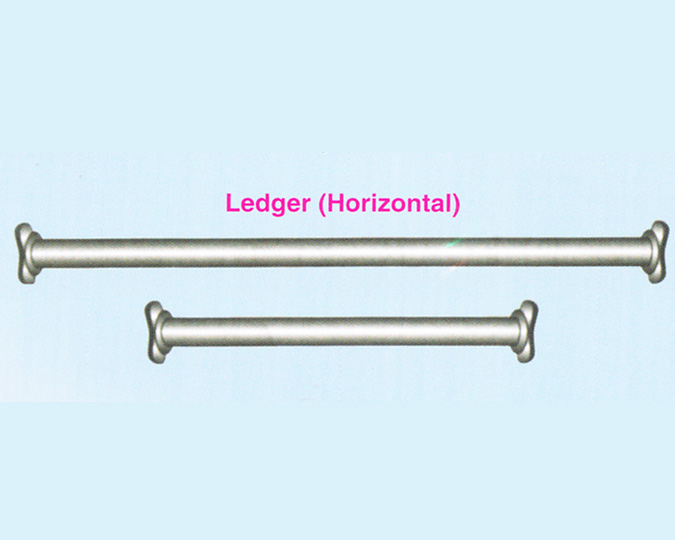

Horizontals
The Cup-Lock system utilizes a carefully selected range of sizes to meet the varied demands of grid in general support of formwork. Many of these can also be used for access structure. Each has forged blade ends with the minimum projection to resist site damage.
- Leight weight, combing with ample rigidity
- Multipurpose use
- No loose fittings
- Rigid, easy & quick to erect
- Cuts labour & timber cost & time
- Ideally suited for slab, repair, paints, chimney work, inside and outside plastering

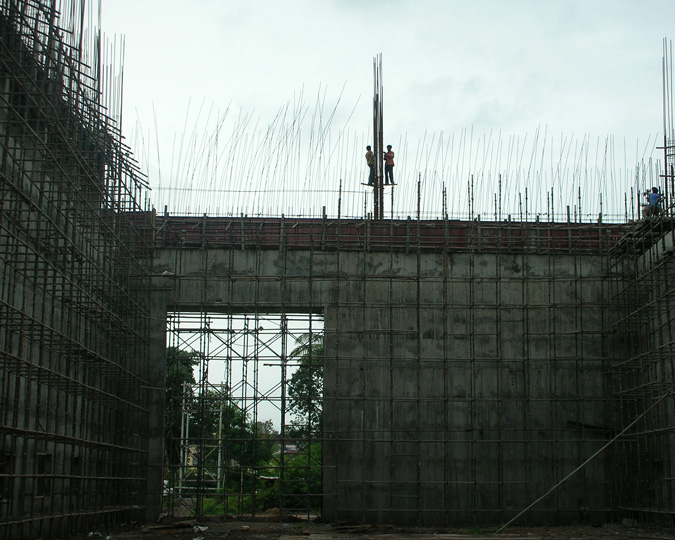

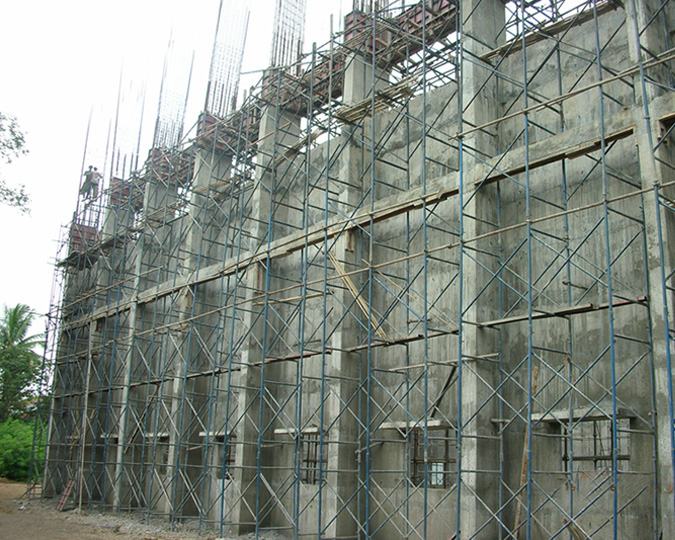

MSF scaffolding system is manufactured from tested quality of 40 NB steel tubes conforming to ISI specifications. The scaffolding comprises of 2 Mtr. height and 1.25 Mtr. wide welded frame connected. Together by scissor type cross bracing, secured to the frames by ordinary nail available at site and ordinary M.S. bar for locking. Adjustable base is provided to take care of unevenness of ground & adjustable 'U' type stirrup-head for fixing direct into leg of the frame to provide fine vertical adjustment between 75 MM to 500 MM. These frames with 40 M verticals recommended up to 30 Mtr. height for working load.
-

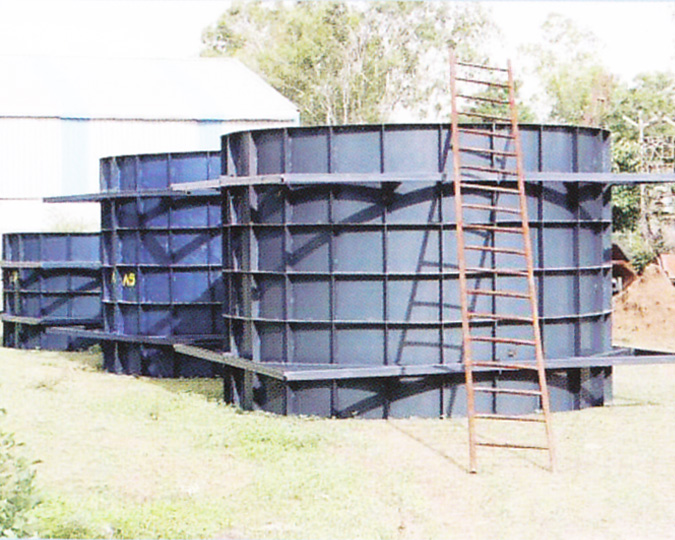

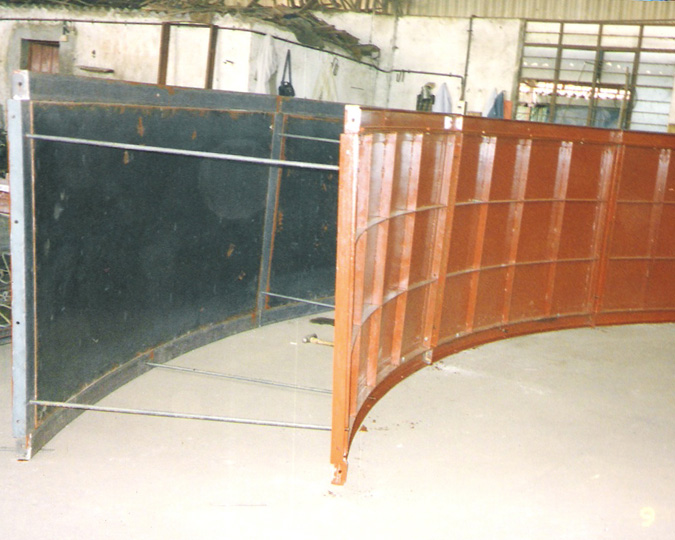

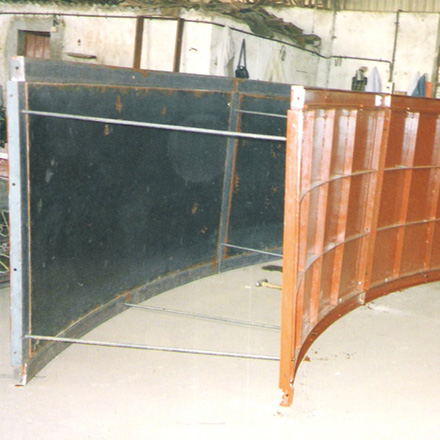

Round Shuttering -

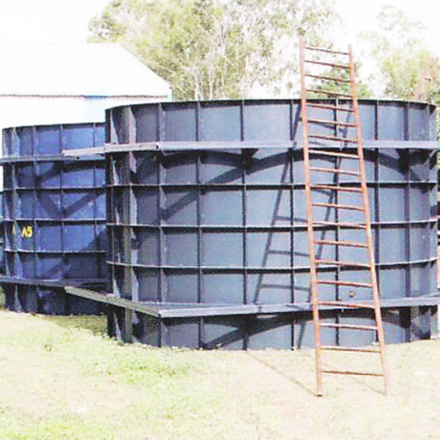

Round Column with Waller arrangements -

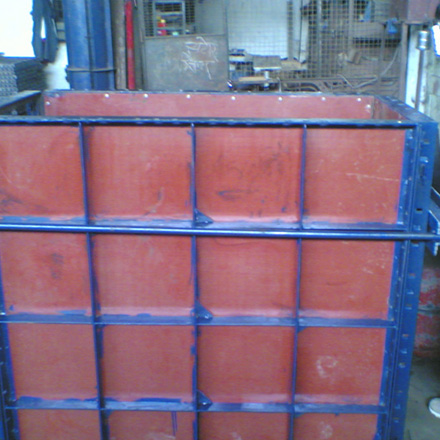

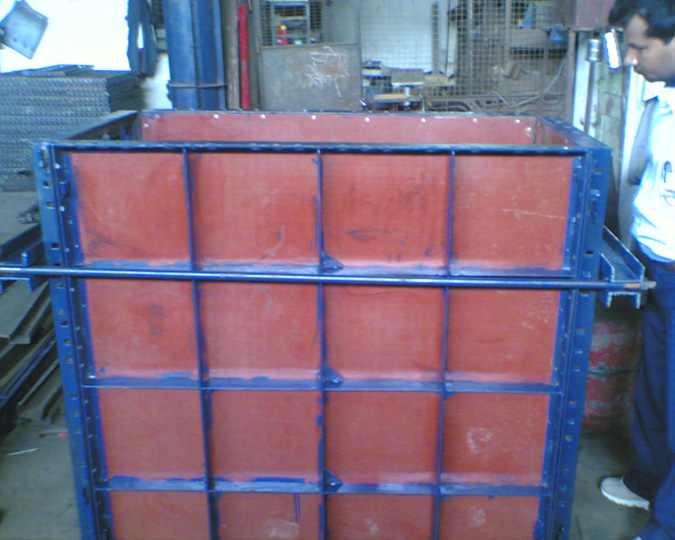

Square Column -

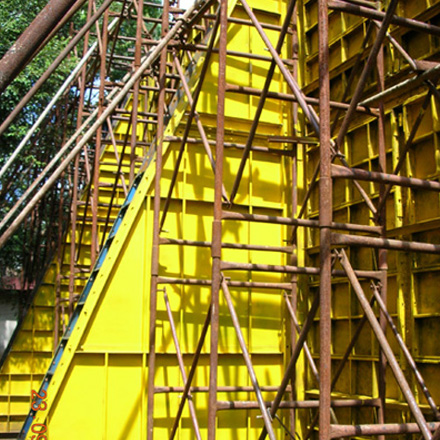

Counter Fouled Arrangements -

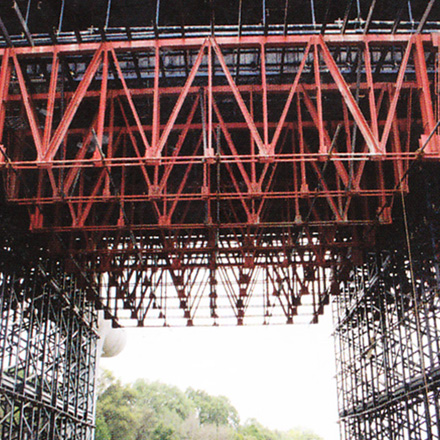

Truss Stagging -

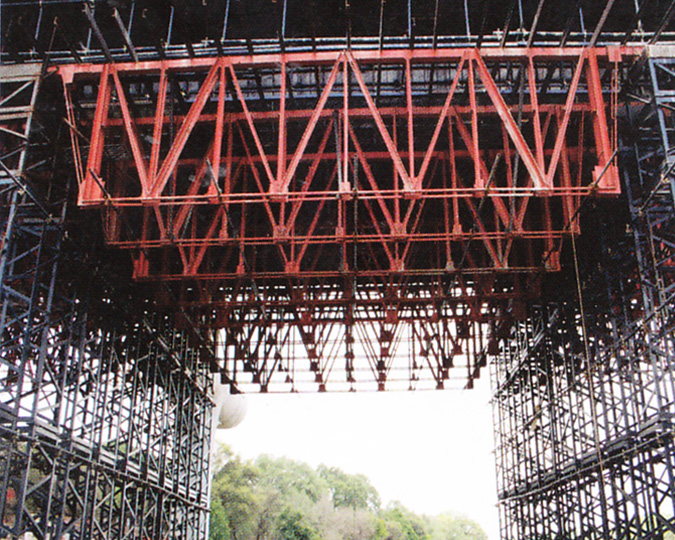

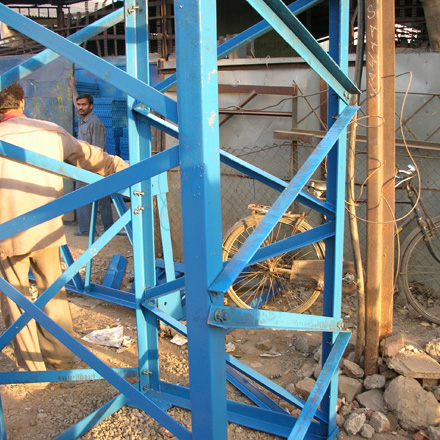

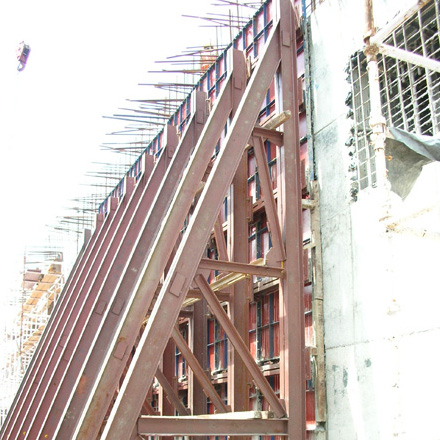

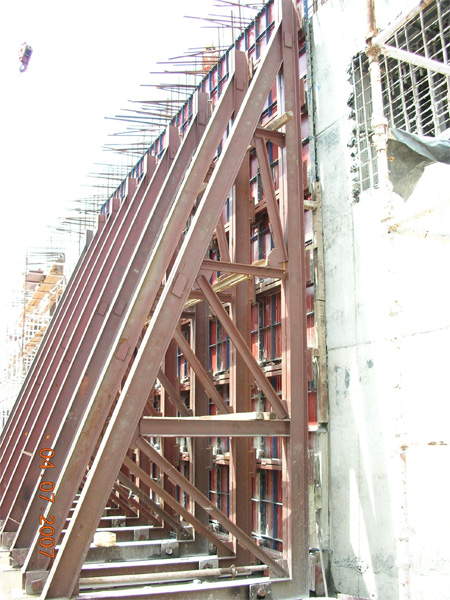

Truss Arrangement -

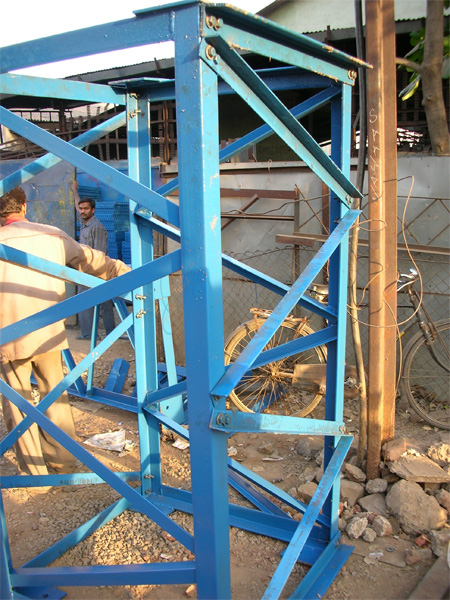

Cribs Bolting -

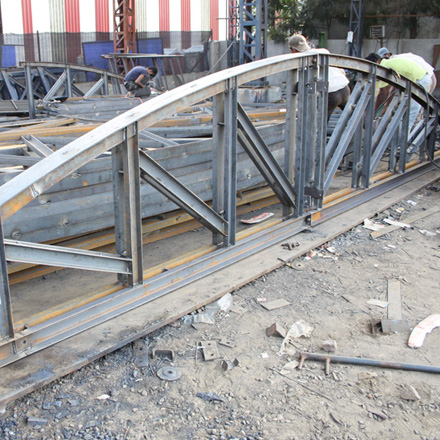

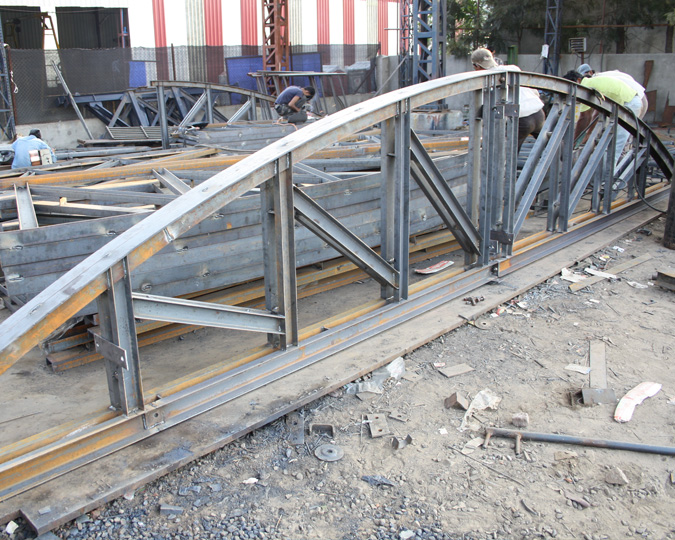

Arch -

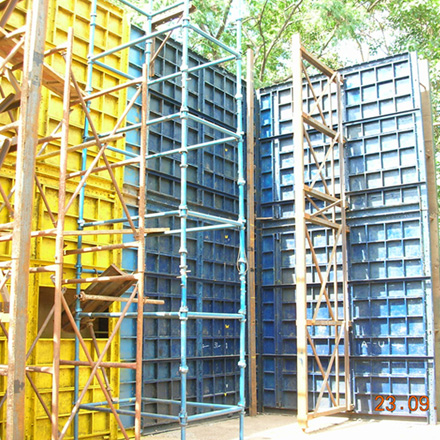

Conventional Wallform Shuttering -

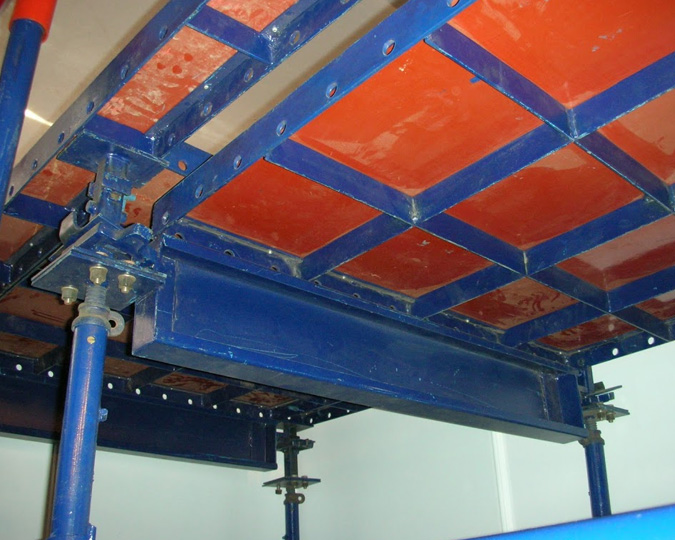

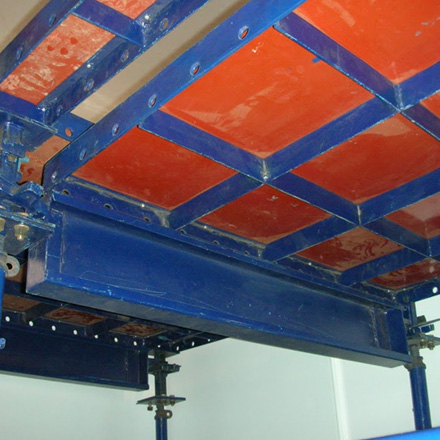

Drop Head System

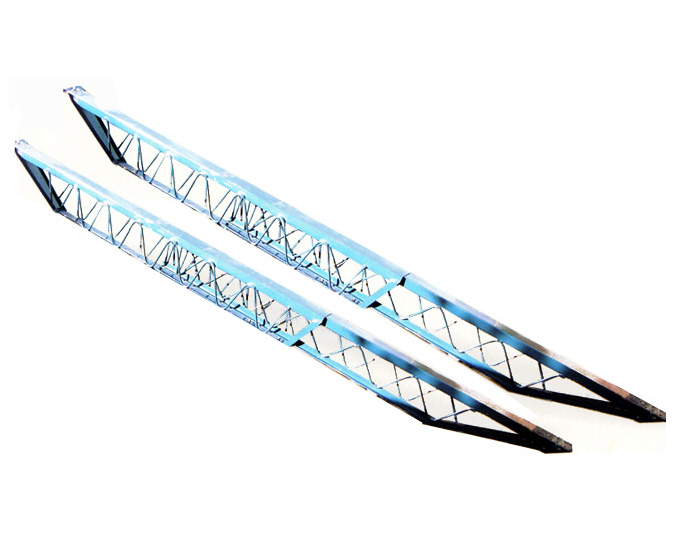

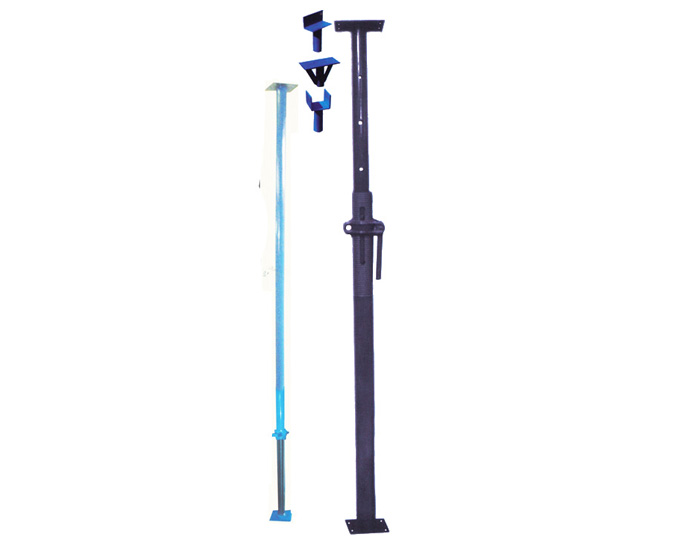

MSF : Roll Thread / Cut Thread Props are manufactured from top quality, ERW steel tubes confirming to IS:1161 / 1239 grades YST22. Sturdy 150 * 150 * 6 MM head and foot plates welded on inner of (40 NB) M & Outer (50 NB) M members having matching holes for fastening of props on top of each other to gain additional heights. Nail holes provided on top of each other to gain additional heights. Nail holes provided on Head and Foot plates for nailing runners / bearers on to props.
Size. |
Minimum Ht. (Mtr.) |
Maximum Ht. (Mtr.) |
Safe Axil Load in Kg. |
|
Close |
Extended |
|||
1 |
1.10 |
1.75 |
3500 |
2000 |
2 |
1.50 |
2.75 |
3200 |
2300 |
3 |
2.00 |
3,25 |
3000 |
2200 |
4 |
2.00 |
3.75 |
2900 |
2000 |
5 |
3.00 |
4.75 |
2300 |
1150 |
New Prop takes load of 8.5 tonnes extended position & 16 tonnes load in closed position
Adjustable Span
- Light Weight with total rigidity longer life
- Eliminates cost of cutting & wastage of timber
- Cuts labour cost tremendously
- Gives Excellent concrete finish
- Compact for storage and transport
Type |
Minimum MTR |
Maximum MTR |
1 |
1.10 |
1.75 |
2 |
1.50 |
2.75 |
3 |
2.00 |
3,25 |
4 |
2.00 |
3.75 |
5 |
3.00 |
4.75 |
