Formwork & False Work

MSF Shuttering & Formwork

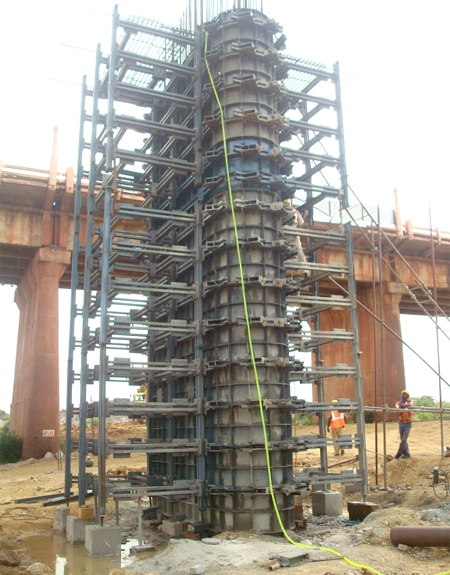

Pier - Elliptical Vase Shape Pier
Elliptical Vase Shape Pier Elliptical Vase Shape Pier

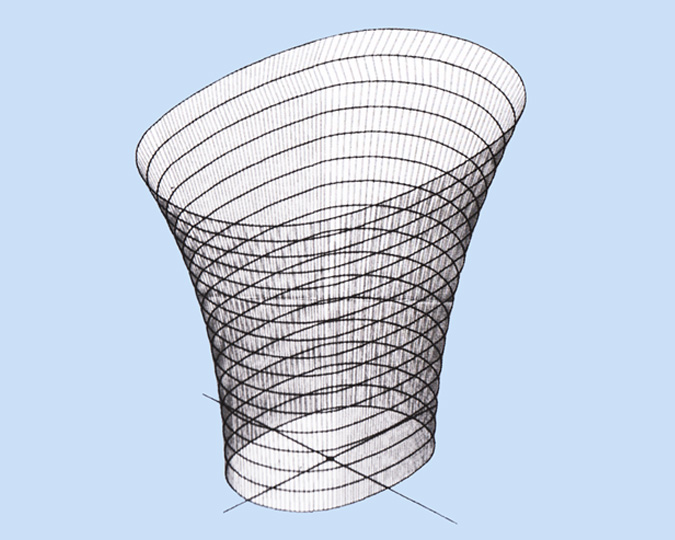

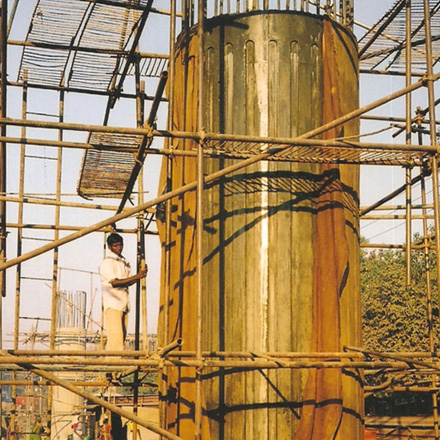

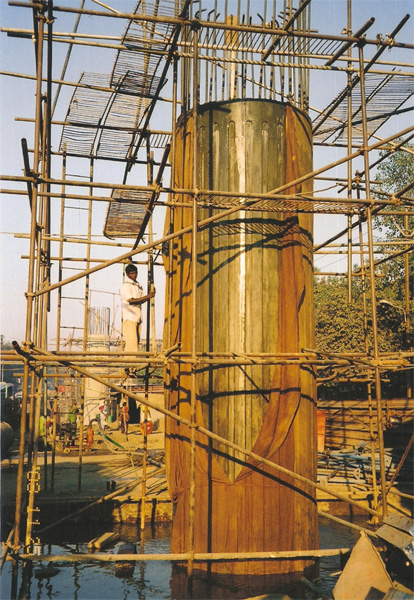

Elliptical shape with both sides curvature formwork having Vase Shape with rubber lining

Dimensions : 4 Mtr. (H) Single Pour, 4 Mtr. Radious at top on one side.

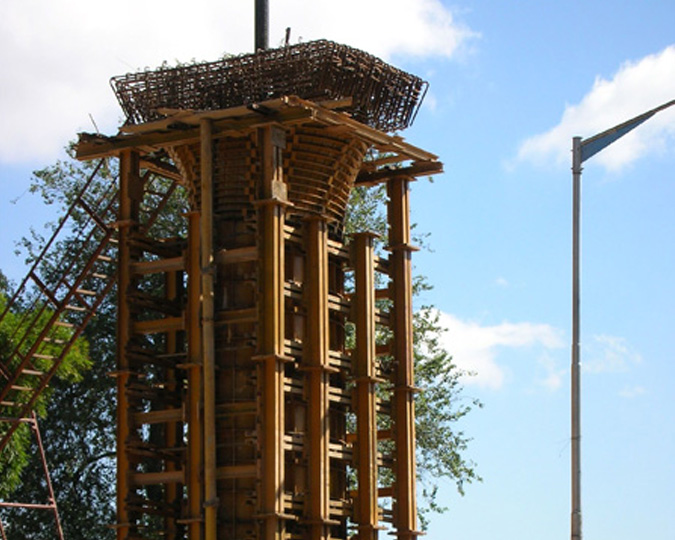

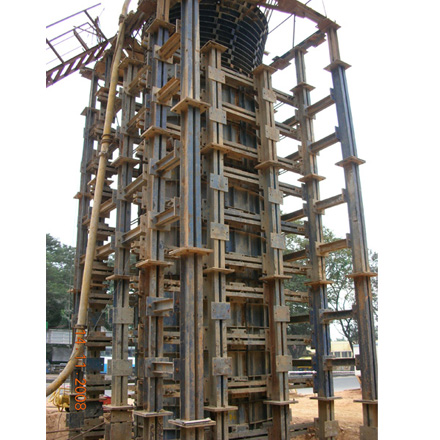

Pier & Pier Cap
Pier & Pier Cap Pier & Pier Cap

India's one of the most prestigious project for Banglore Metro Rail Corporation Ltd. (BMRCL)

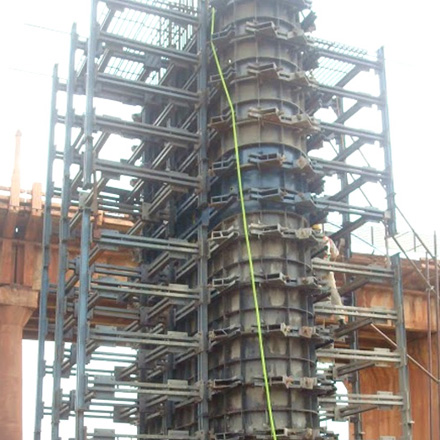

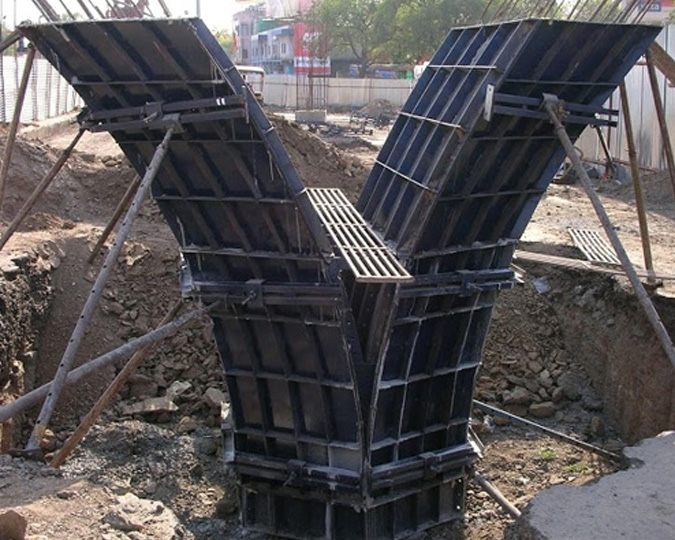

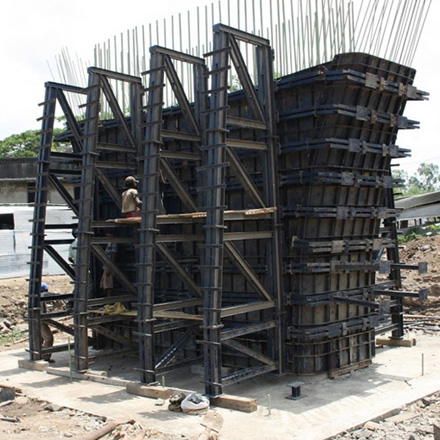

Hexagonal Pier with Steel Grooves
Hexagonal Pier with Steel Grooves Hexagonal Pier with Steel Grooves Hexagonal Pier with Steel Grooves

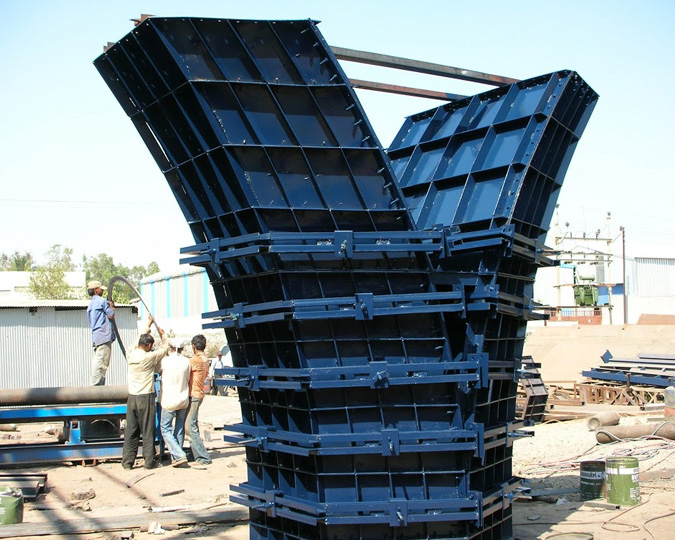

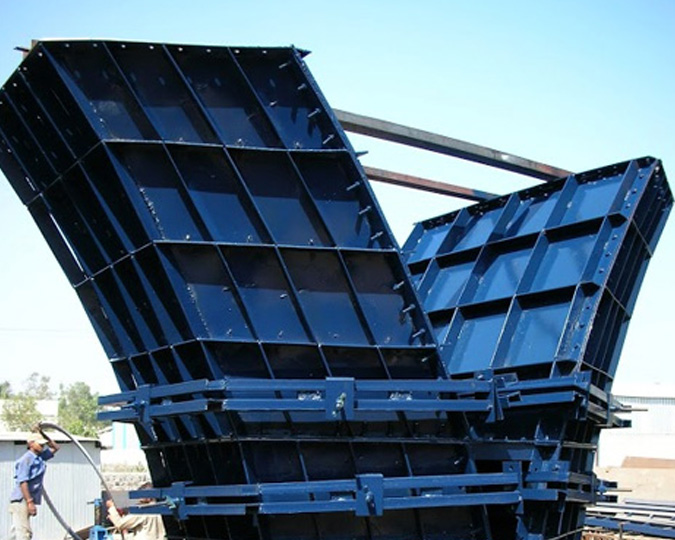

6300 MM (H) & Flaring Portion 3000 MM (H) in 'Y' Shape

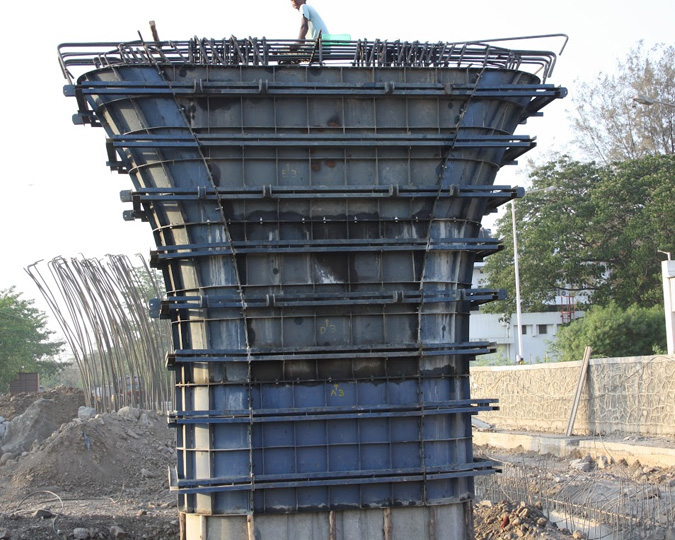

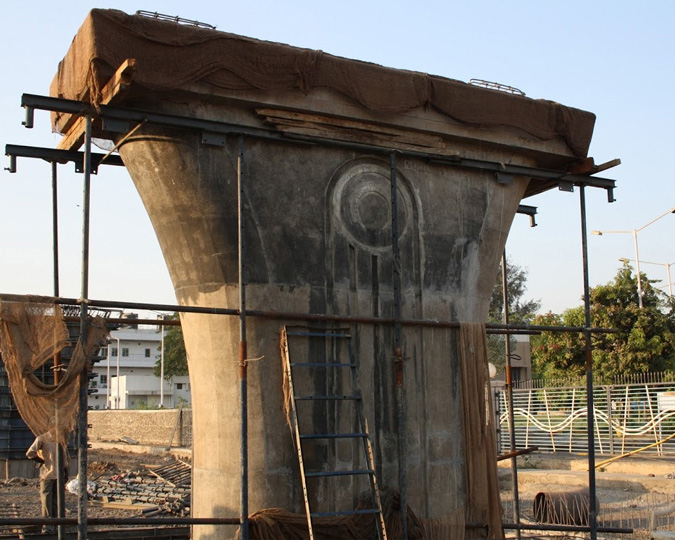

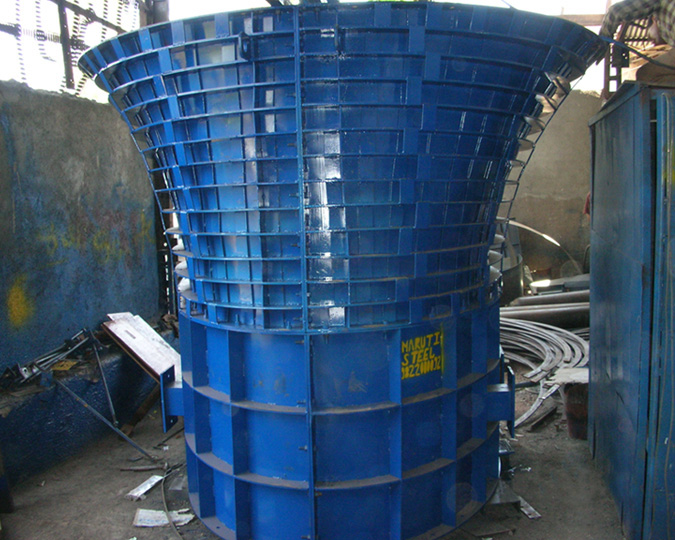

Capsule Shape Pier Cap with Steel Grooves & Flare Portion
Capsule Shape Pier Cap with Steel Grooves Capsule Shape Pier Cap with Steel Grooves

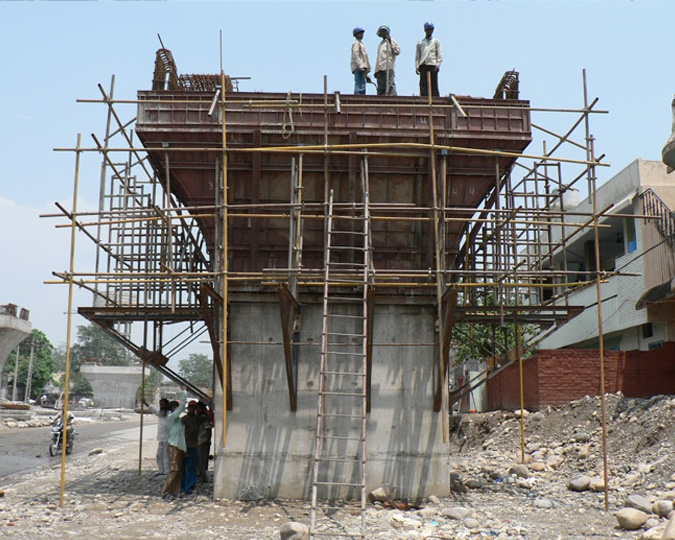

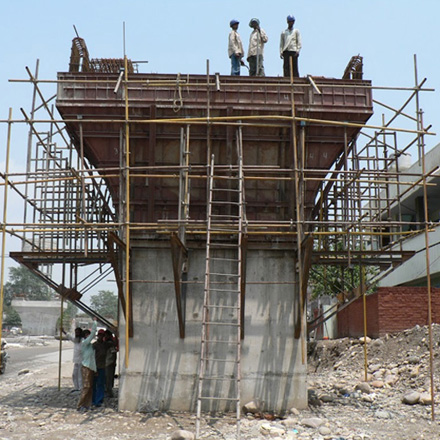

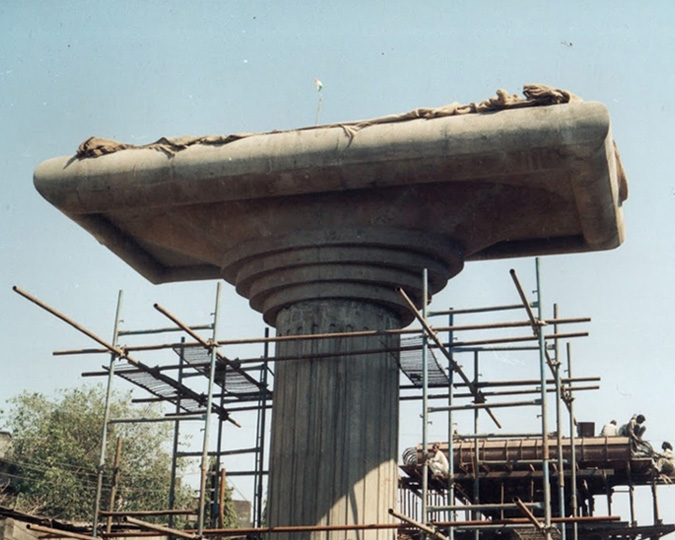

Pier & Pier Cap with the Bracket Support to Pier Cap
Pier & Pier Cap with the Bracket Support to Pier Cap Pier & Pier Cap with the Bracket Support to Pier Cap

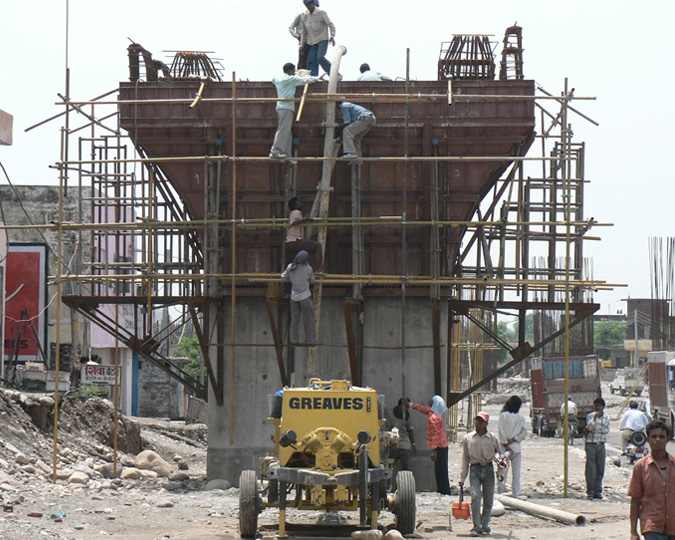

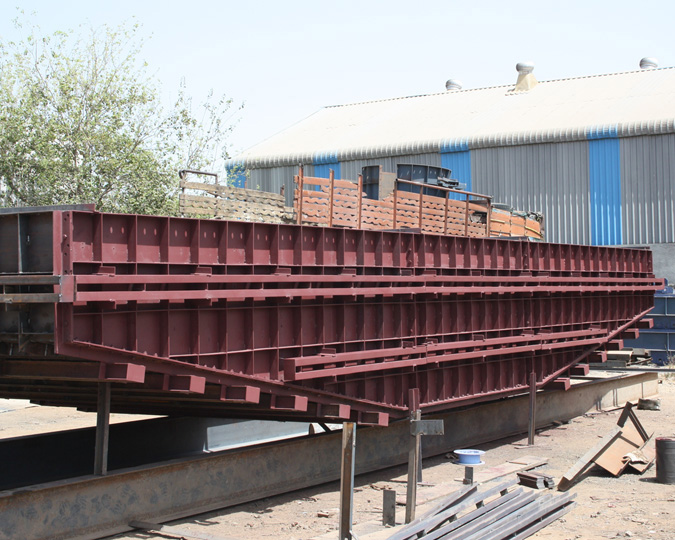

'L' Bracket Support to pier Cap
L Bracket Support to pier Cap L Bracket Support to pier Cap

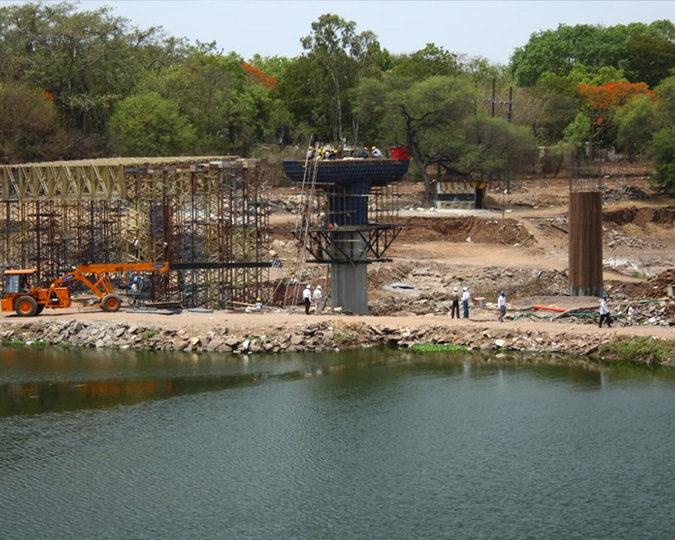

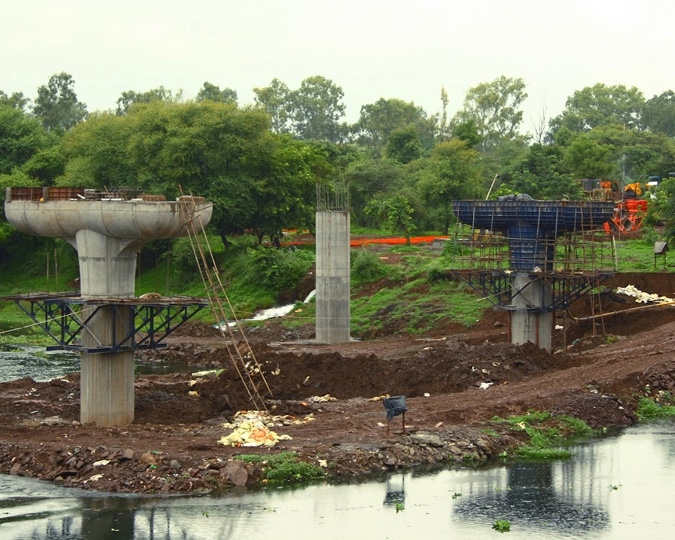

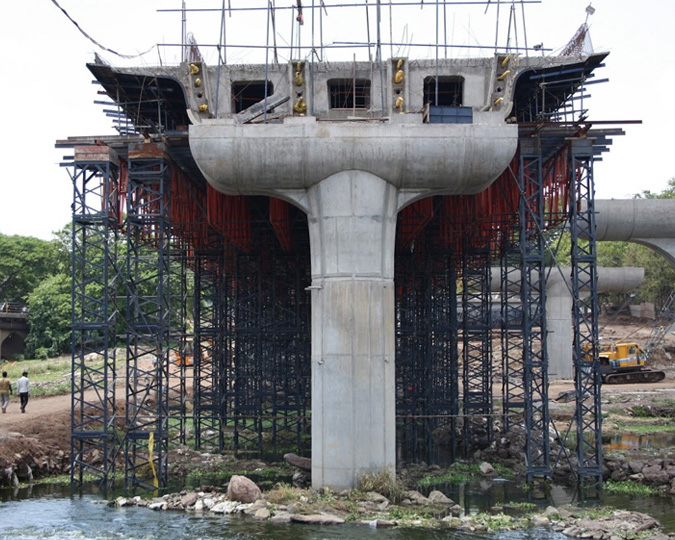

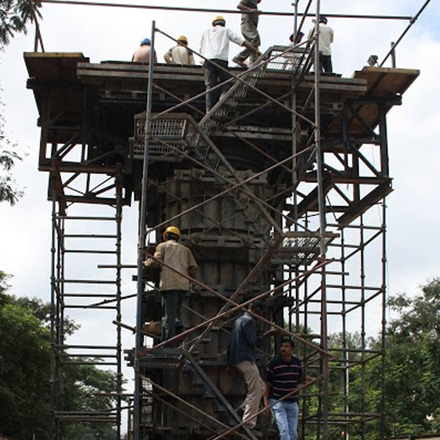

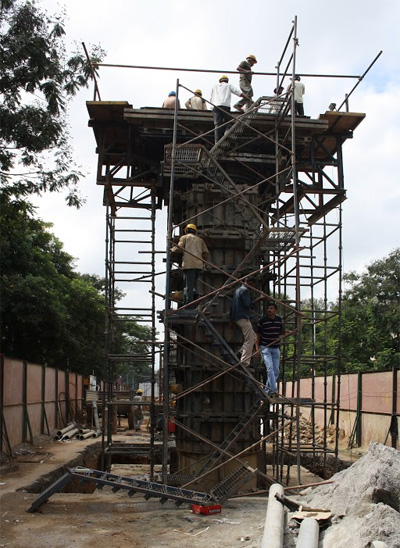

Casting of Pier & Pier Cap
Casting of Pier & Pier Cap Casting of Pier & Pier Cap Casting of Pier & Pier Cap

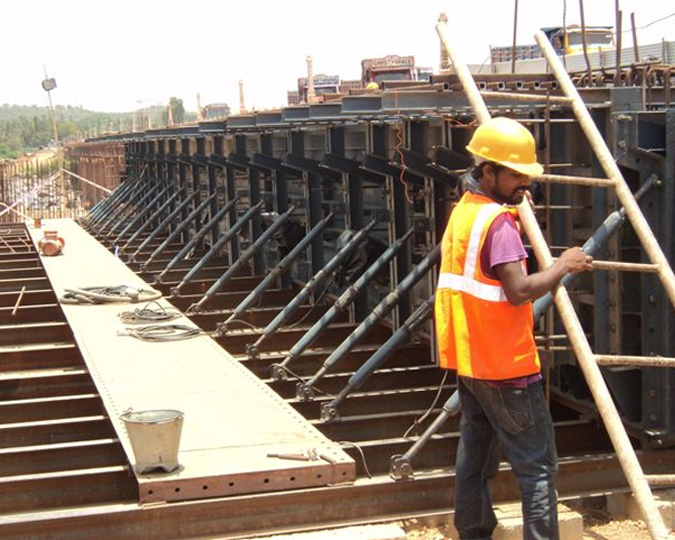

Box Girder
Box Girder

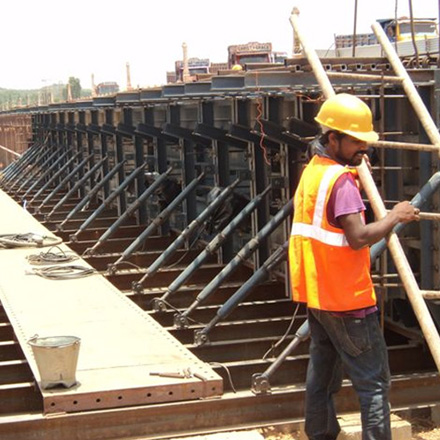

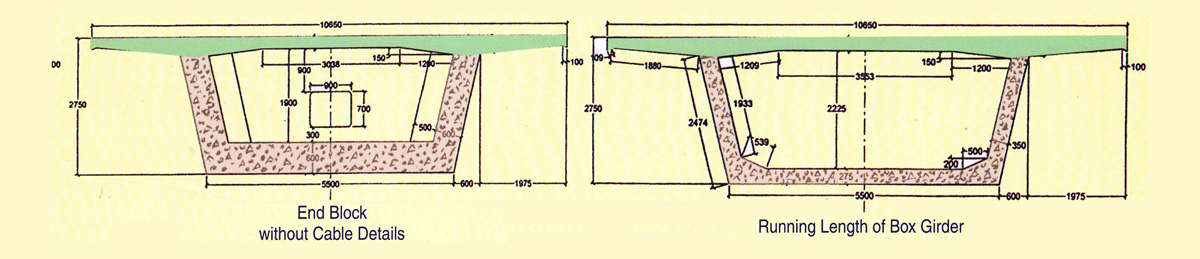

Cross Section of Casting Pit with bottom Slab and internal and external Web Formwork alongwith Cantilever and carriage way formwork

Box Girder

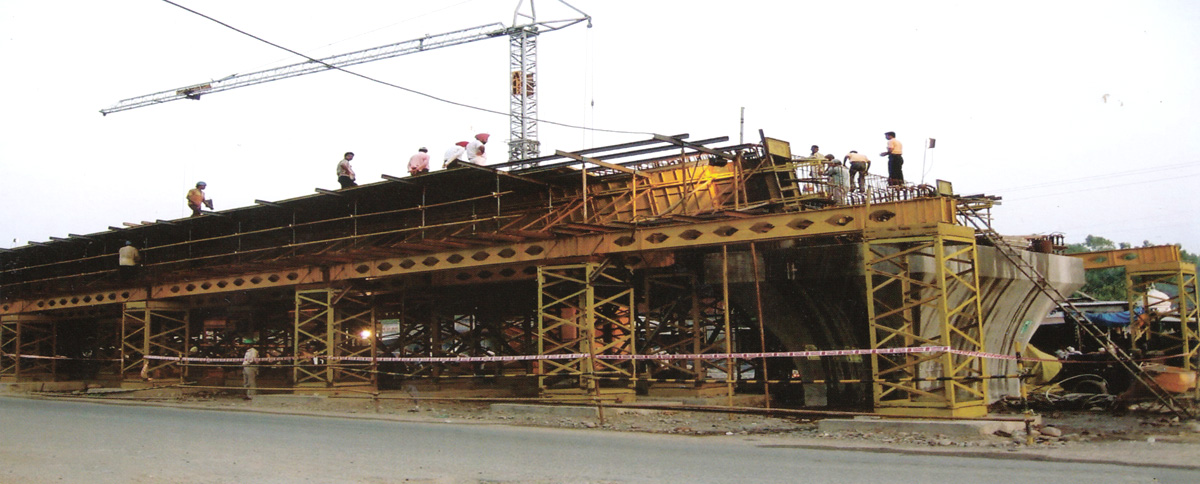

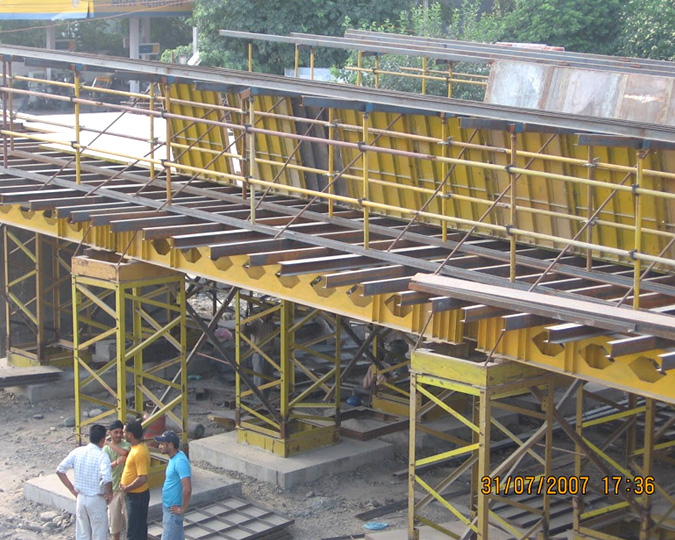

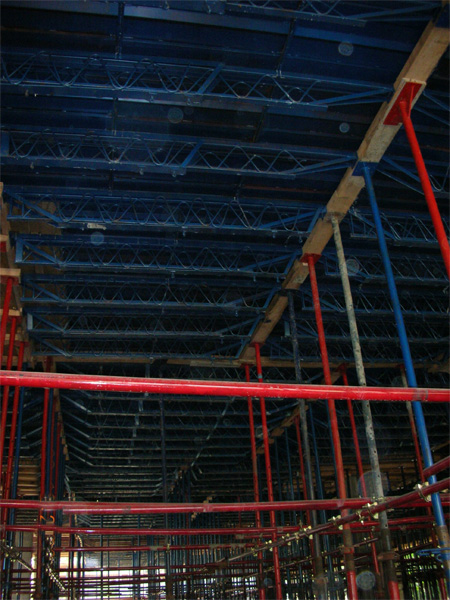

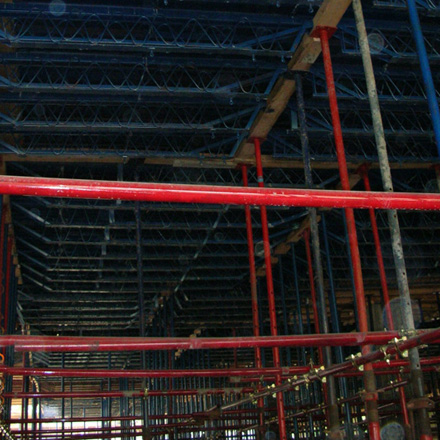

Box Girders are casted with majority of standard size from work plates, which were to be reused as other form work plates. These girders are supported by Trussels and standard cup lock system

Box Girder Box Girder

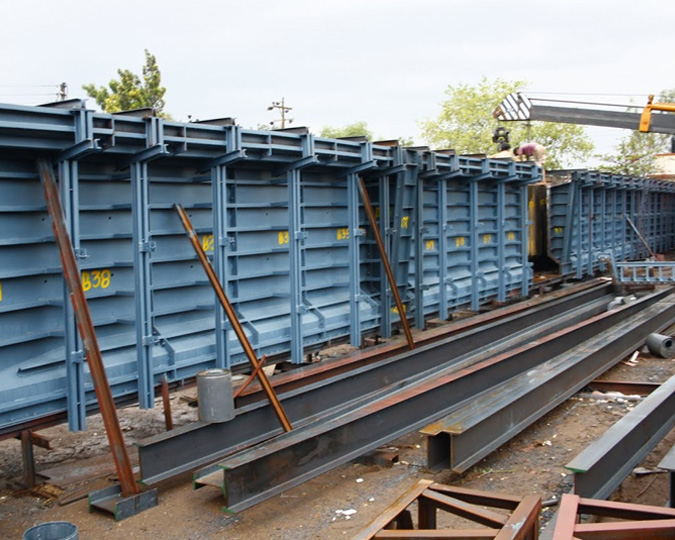

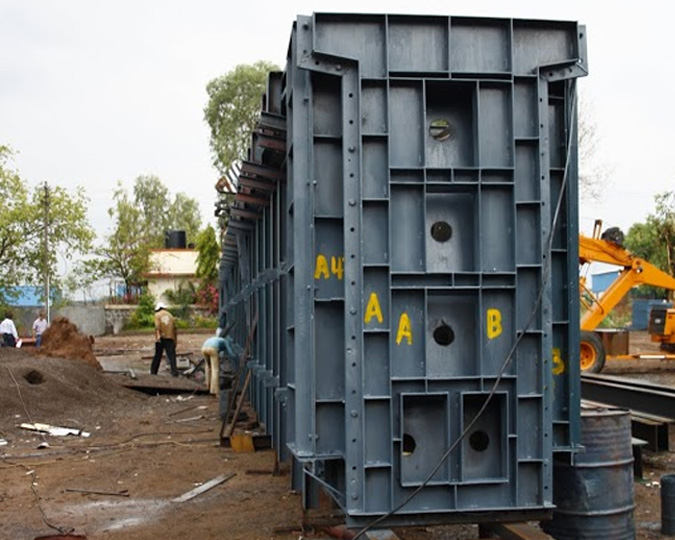

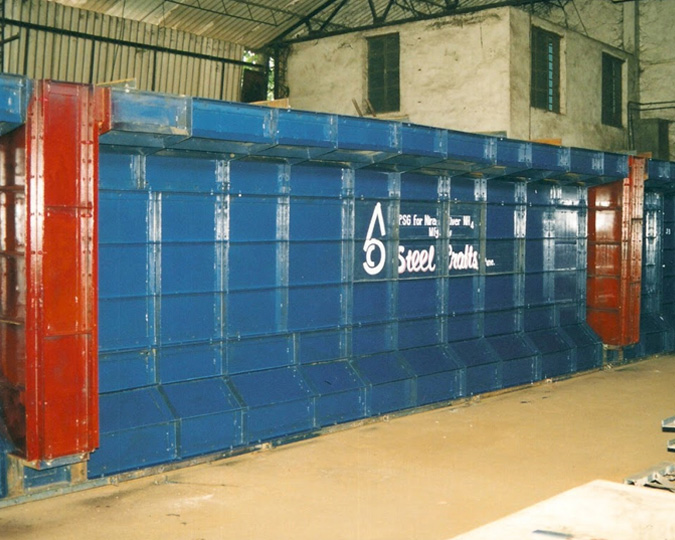

I-Girder

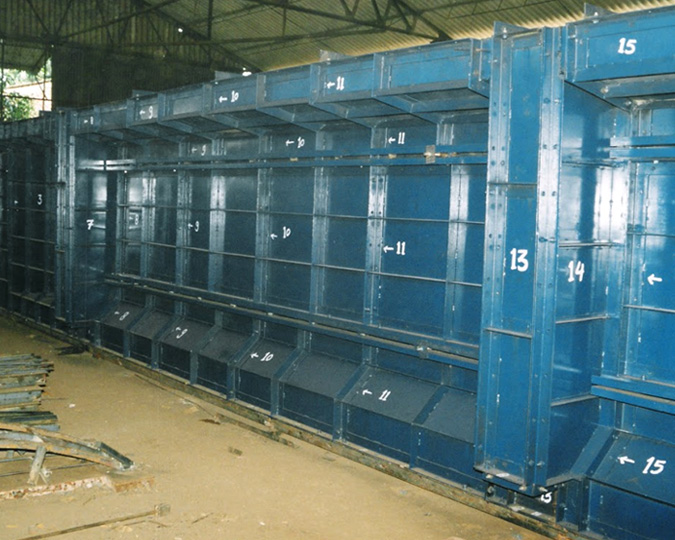

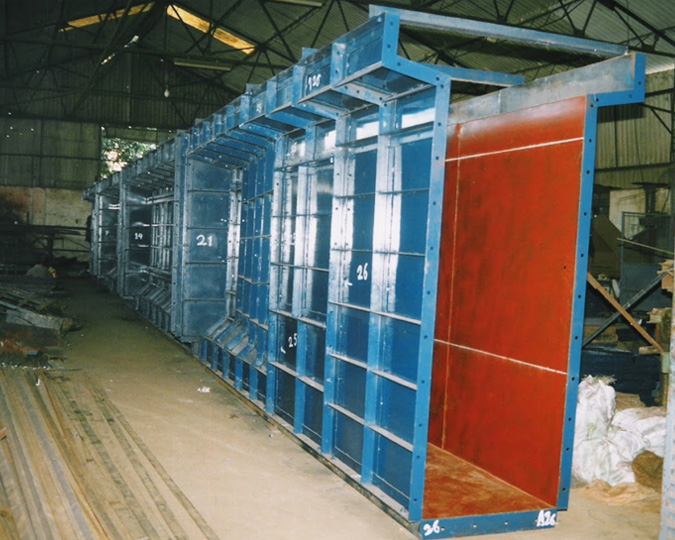

I-Girder I-Girder I-Girder

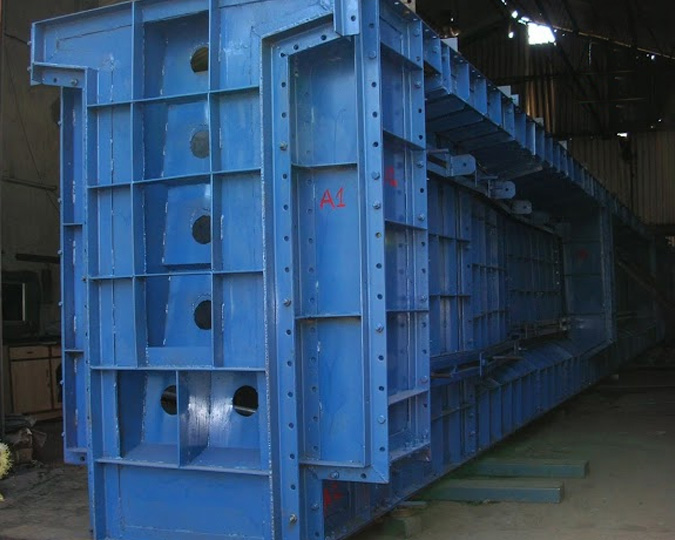

Height of Girder 2250 MM Straignt view length 21480 MM

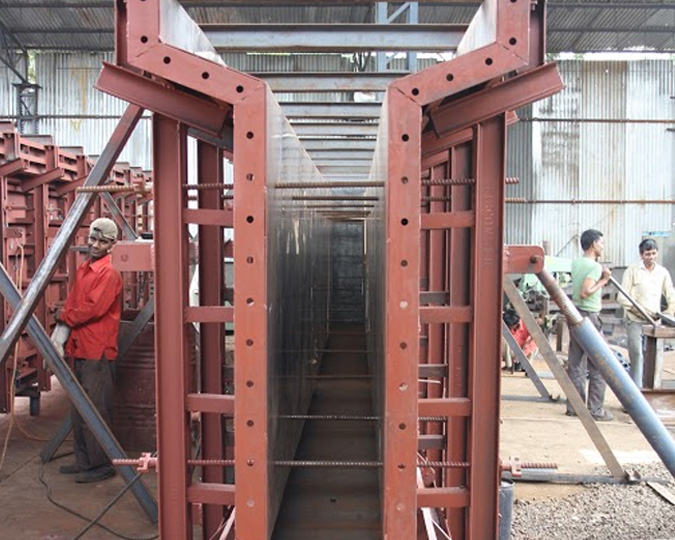

I-Girder I-Girder I-Girder

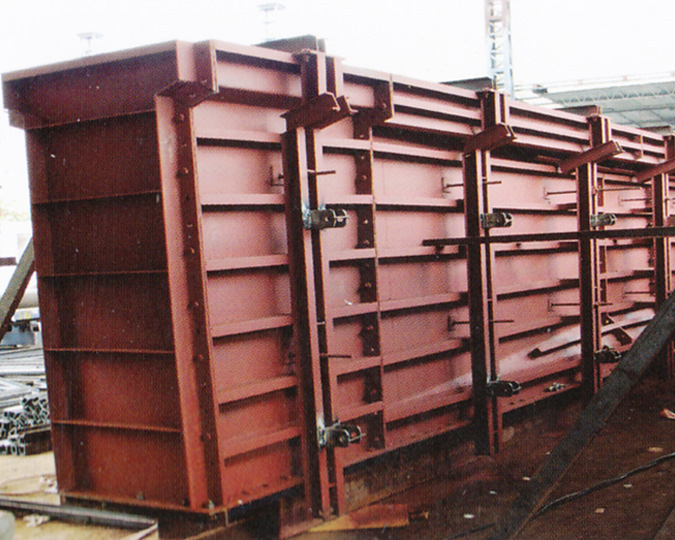

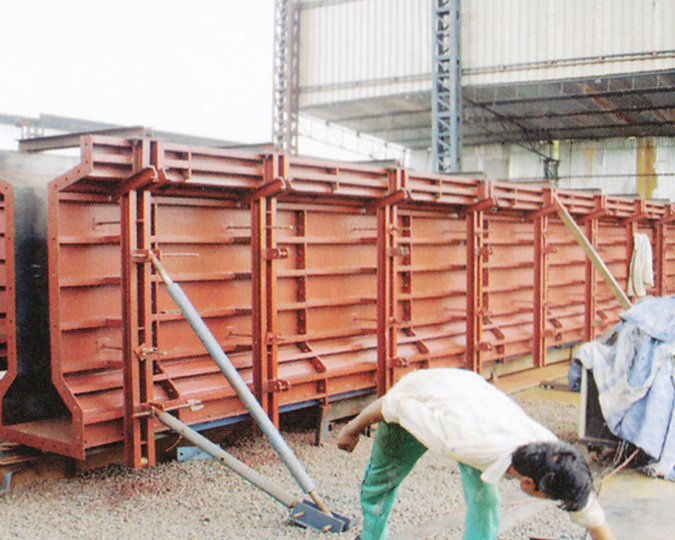

Height of Girder 1750 MM Straignt view length 33000 MM
